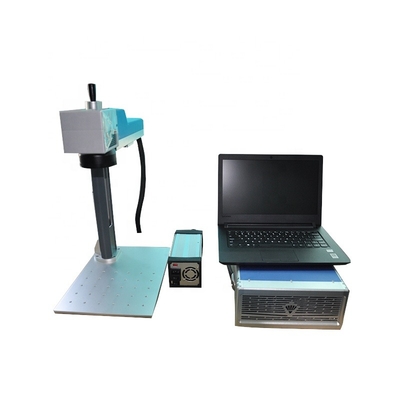

laser marking mopa color fiber laser marking sundor 20w 30w 50w mini portable metal laser engraving machines

Difference of 20w 30w 50w laser power

20w fiber laser marking machine
The most hot selling system by lowest price advantage. Especially on plastic and hard metals, it occurs perfect results. automotive, packing, kitchenware equipment, hand tools sectors are main ways preferred on

30w fiber laser marking machine
suitable for job shops and people who needs more power. One upper level then marking towards cutting. Especially for cutting, this is the first machine fits your requirement to cut.

50w fiber laser marking machine
do deep engraving, micro cutting, marking and 3D engraving perfect. Mostly preferred by jewelry sector, creates %40 more effective results according to its competitors. One of the fastest model in market.

Excellent beam quality
The optical fiber laser is the medium mixed yb double-clad fiber, resonant cavity length, so the beam quality is very good, M2 value is 1.2-1.5, the output flare diameter can achieve 10 microns.
Excellent beam quality to ensure that optical fiber laser marking machine in a variety of material satisfying marking effects, widely applied in most metal marking industries (such as brass, titanium, steel, iron, aluminum and so on) and non metal materials like cloth, fabric, PVC, MDF, leather, acrylic, plastic and etc.

Laser long service life
MH-FP series optical fiber laser marking machine use 1064 nm laser diode as the sources are used to pump, the average working hours can up to 100000 hours.
Small and exquisite Volume , applicable in the bad environment
Optical fiber surface area/volume ratio is high, also good cooling effect, no need huge water cooling system, just simple air cooling, can be running in bad conditions, such as high impact, high vibration, high temperature, dirt under the conditions of the normal operation.

Free maintenance operation
Optical fiber laser no need for any maintenance (not including adjust or clean lens)


Light path and galvo scanner
The optical system: 1064 nm based on the high precision, vibrating mirror reflection focusing system.
Laser correction: choose red visible laser collimator's systems instructions axis position, indicating light and laser coaxial, in the process to tracing the function of the instructions and timely and accurate registration.
Galvo mirror is set to track operation of the laser executive mechanism, and it mainly consists of high accuracy servo motor, motor driven plate, mirror, F-θ lens and dc supply of power.

Computer control system
Laptop with WINDOWS operating system in English

Special marking software
Marking software in WINDOWS interface,English operating system, compatible with PHOTOSHOP, CORELDRAW, AUTOCAD and so on many kinds of drawing software:time date, bar code, serial number, mark, output in English, graphics, all kinds of bar code, Qr code, etc. Word stock the function is all ready, 200 kinds of fonts, can customize wired font, creating one of the proprietary dictionaries.
