3W 5W All-in-One Structure Water Cooled Structure UV Marking Machine UV Laser Fiber Laser Marking Machine For Plastic/Glass

1 Set
MOQ
$3,450.00(1 - 4 Sets) $3,400.00(5 - 9 Sets) $3,350.00(10 - 14 Sets) $3,300.00(>=15 Sets)
Prijs
3W 5W All-in-One Structure Water Cooled Structure UV Marking Machine UV Laser Fiber Laser Marking Machine For Plastic/Glass
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Application: Laser Marking
Working Accuracy: 0.01MM
Graphic Format Supported: AI, PLT, DXF, BMP, DXP
Laser Type: UV
Condition: New
CNC or Not: Yes
Cooling Mode: WATER COOLING/AIR COOLING
Control Software: EZCAD
Laser Source Brand: JPT/INNGU
Weight (KG): 35 KG
Key Selling Points: Easy to Operate
Warranty: 2 years
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Marking Area: 110mm*110mm-300mm*300mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Other, Engine
Mode of Operation: Pulsed
Configuration: stand-alone
Feature: Water-cooled
Product name: All-in-one structure uv marking machine 3W 5W
Laser Power: 3w 5w 10w 15w
Laser source: JPT INNGU GAIN
Laser wavelength: 355nm
Working area: 110*110mm /150*150mm/175*175mm/ 200*200mm
Marking Depth: 0.01-2mm
Power supply: 110V/220V 10% 50Hz/60Hz
Marking Speed: 0-7000mm/s
Marking material: Non Metal Materails
Cooling system: Water/Air Cooling
Basis informatie
Betalen & Verzenden Algemene voorwaarden
Packaging Details: 1.We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam,to protect the machine from shaking.For the inside layer, the machine is covered by thickening plastic bag for waterproof. 2.Air-WorthyPack
Supply Ability: 500 Piece/Pieces per Month
Productomschrijving
Products Description

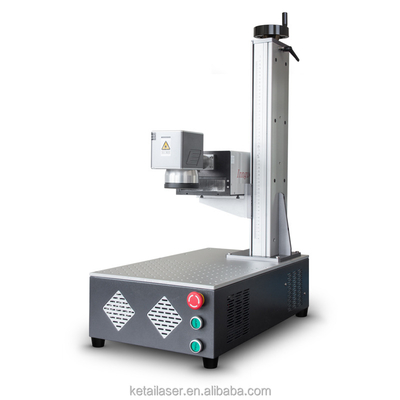

UV laser marking machine
The focusing spot of 355 ultraviolet laser is very small. The effect of marking is to directly break the molecular chain of the substance through the short-wavelength laser, which greatly reduces the mechanical deformation of the material, although it changes due to heat (cold light), so it is mainly used for ultra-fine marking. Marking and engraving are especially suitable for applications such as food and medical packaging materials marking, micro-perforation, high-speed division of glass and porcelain materials, and complex pattern cutting of silicon wafers.

Advantages of UV laser marking machine

Ultraviolet lasers have the benefit of other lasers that limit thermal stress. This is because most UV laser systems operate at low power.
Due to the extremely small focusing spot and the small processing heat-affected zone, the ultraviolet laser can perform ultra-fine marking and is the first choice for customers who have higher requirements for marking effects;
Parameter
Product name
UV laser marking machine
Laser source brand
JPT/INNGU/GAIN
Warranty period
one year warranty
Delivery time
Three to ten days after receipt of payment
Details
Samples

UV marking machine application

1.aviation cable ties and other plastic parts
2.gold plating, silver and other surface marking
3.oily plastic material surface marking, eg: Samsung panel, melamine tableware
4.Marking the surface of halogen-free materials, eg: chargers for IPHONE products, connecting cables and other peripheral products
5.Glass products ,eg:glass cup,glass bottle,bowl
6.Silicon wafer processing
7.Identification of daily necessities (beverage packaging, food packaging)
Package and shipping
1.We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam,to protect the machine from shaking.For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2.Air-WorthyPacking or Sea Packing which comply with international standard.

Company Profile
Liaocheng Ketai Laser (Worldslaser) Equipment Co.,Ltd

Liaocheng Ketai Laser (Worldlaser) Equipment Co., Ltd. which located in Liaocheng City,Shandong Province, China .It was established in 2007 .We are the professional factory which owns the complete system of R&D,Manufacturing,sales and service integration.We are now specializing in manufacturing laser engraving & cutting machine,desktop laser stamp engraving machine,fiber marking machine,laser tube,liner guide seat,laser heads,working platform for laser machine,and WD series engraving and cutting machines under outstanding quality.
Survice
1.Two year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when if any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant. 4.24 hours on line service each day, free technical support. 5.Machine has been adjusted before delivery
6.For free sample testing, please send us your file, we will do marking here and make video to show you the effect,or send sample to you for checking quality.
FAQ
Q1. What support do I get with my laser machine?
A1: All of our machines come with unlimited, lifetime support.

Q2, Do I need special technicians to run a Ketai laser?
A2: No. We will give you full training on how to use your new laser machine and the software provided, and how to carry out the basic routine maintenance.The training is easy to understand and the laser machine is simple to operate.

Q3, What do I need to get started with a the laser?
A3: The space for the machine to stand, a computer for your laser machine to run off, the sockets for the laser equipment to connect to, and yourself for the training

Q4. How long is the delivery time?
For standard machines, it would be 10-15 days; For nonstandard machines and customized machines according to clients specific requirements, it would be 25 to 35 days.

Q5. How can I get machine's spare parts?
A5:There are two methods. Spare parts can be ordered together with the machine.

Q6. What's the payment method?
A6: You can pay by T/T, L/C, Western Union or Trade Assurance.
